Besq Ap7710

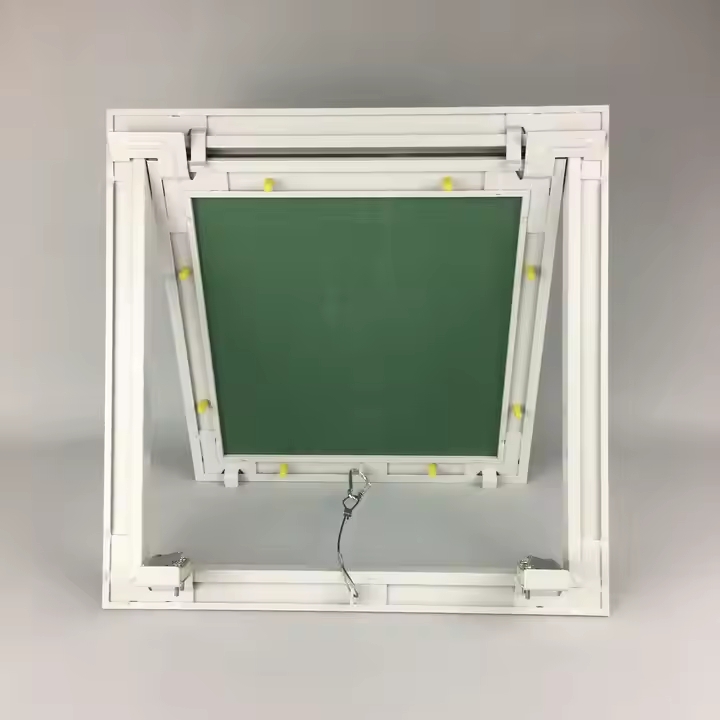

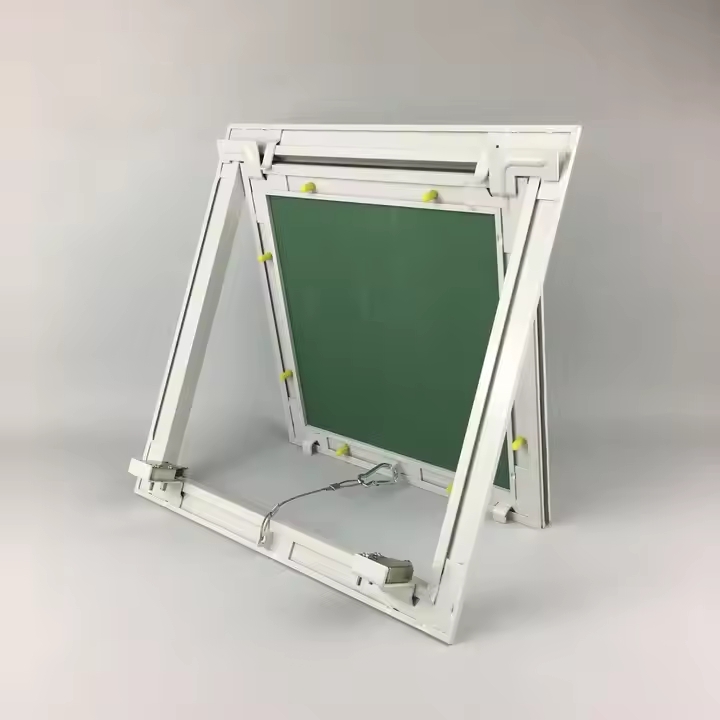

The AP7710 Access Panel is a ceiling and wall access solution designed for drywall installations, featuring a robust aluminum frame and a 12.5mm moisture-proof gypsum board insert. This panel is particularly suitable for environments requiring reliable maintenance access, such as offices, hotels, and clean rooms and this panel combines durability with aesthetic appeal,


🔧 Key Features

• Material Composition: The panel combines a 2mm thick aluminum alloy frame with a 12.5mm moisture-proof gypsum board, offering durability and resistance to environmental factors.

• Moisture and Corrosion Resistance: The gypsum board's moisture-proof properties make it ideal for areas exposed to humidity, while the aluminum frame provides corrosion resistance.

• Design and Finish: The panel is finished with a white powder coating (RAL 9016), ensuring a clean and modern appearance that blends seamlessly with ceiling aesthetics.

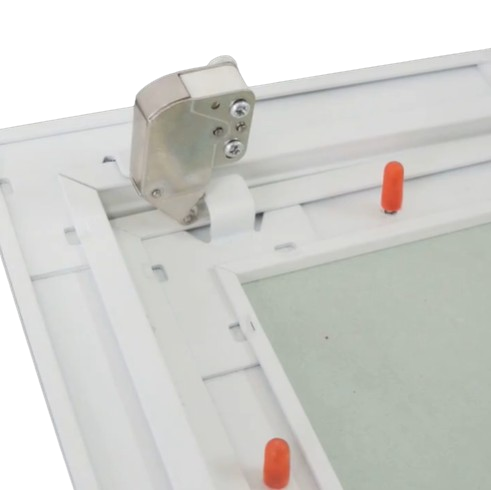

• Locking Mechanism: Equipped with a concealed snap touch latch, the panel ensures secure closure and easy access when needed.

• Standard Sizes: Common dimensions include 300x300mm, 400x400mm, 450x450mm, 500x500mm, and 600x600mm, with custom sizes available upon request.

• Installation: Designed for recessed installation, the panel integrates smoothly with existing drywall systems.


📏 Standard Sizes

The AP7710 Access Panel is available in the following standard sizes:

• 300x300 mm (12"x12")

• 400x400 mm (16"x16")

• 450x450 mm (18"x18")

• 500x500 mm (20"x20")

• 600x600 mm (24"x24")
